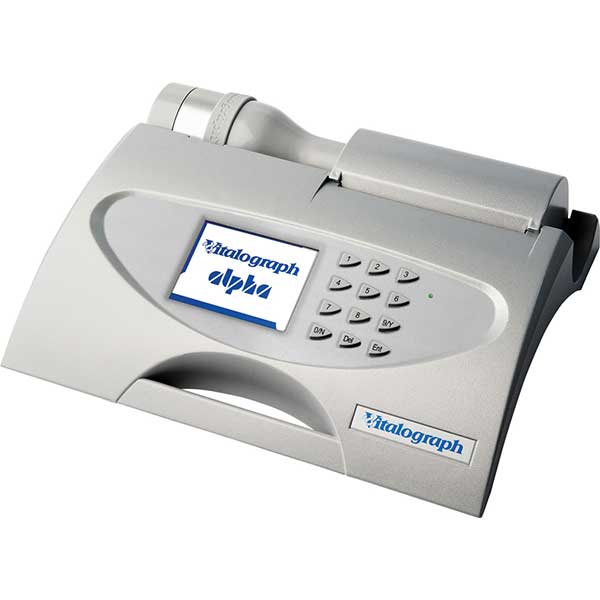

Vitalograph ALPHA
Product: ALPHA Spirometer Model No: 6000 Size: 300 x 250 x 75mm Weight: 2kg net Parameters Measured: Varies by country variant Operating Temperature Range: ATS/ERS Limits: 17 – 37°C Design Limits: 10 – 40°C Voltage/Frequency: 110-250V~50/60Hz Flow Detection Principle: Fleisch type pneumotachograph Volume Detection: Flow integration sampling @ 100Hz Accuracy when Operated in Operating Temperature Range Conditions: Flow +/- from 10% to 5% Max flow rate +/-16L/s Min flow rate +/-0.02L/s Volume Accuracy: Better than +/-3% Maximum Displayed Volume: 10 L
Maximum Test Duration: 90 seconds Flow Impedance: <0.1kPa/L/s @ 14L/s Complies with ATS/ERS 2005 Printer: Thermal Performance Standards: ATS/ERS 2005 & ISO 26782:2009, ISO 23747:2007 Safety Standards: IEC 60601-1:2005 Medical Safety Standard: Medical Devices Directive 93/42/EEC as amended Designed & Manufactured Under: ISO 13485:2003, FDA 21CFR820, CMDR Communications: USB and Compact Flash
Download:Â ALPHA
