Capacity: 3.6 Liter with decent look

Heaters 120 Watts

A float switch provides a safety cut off should the water level fall

below the minimum permitted level,

Two modes for solution replacement emptying and filling

Each tissue chamber has an adjustable gas diffuser for oxygenation and

push toggle on the front of the unit control the filling and emptying of the

tissue chambers via toggle switch.

Perspex sheet wall thickness 8mm

Magnetic Stirrer for uniform temperature

The control system provides an LED display

Inner Tissue Bath Standard 25ml Capacity Qty 1 with each Bath

Detachable Stem Tissue Vessel, supplied as standard,

for increased convenience when changing tissue vessels.

(The tissue chamber portion of the tissue vessel can be removed

without disturbing the stem or disconnecting the tubing for the warmed

perfusate and drainage.

Inner tissue bath Pyrex Material Graduated 25 ml Capacity

O ring provide 2 set

Warming Coil Round/Curve flat type

Power: 220 Voltages

Download:Student Single Tissue Bath

This Heated Water Bath is for the most demanding research work.

It has two heaters having 250 watts of combined power.

The temperatur is automatically controlled by a sensitive thermistor

in a metal tube inside the bat to hold the bath water

temperature has stabilized. A magnetic stirrer in the bottom of the

tank slowly circulates the water to ensue uniform temperature.

These heaters are mounted through the front of the tank near the

bottom and extend 100 mm (4 in) into it. The desired temperature of

the Water Bath is set by a dial on the front panel that is graduated

from 15o to 45o C in 5o increments.

Two on/off switches and indicator lamps, one for power and the other

for the magnetic stirrer are on the front panel.

Download:Isolated Organ and Tissue 2

a s w .a mwww bdulwahabsons.co

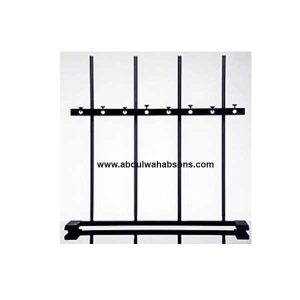

Stands H Type with SS Rod Designed for durability and flexibility, these Lab Stands are ideal for the lab bench. The heavy duty, steel base designs provide ballast while the stainless steel support rods, lengths in of 12…..

Download:b3

AWS provides complete hardware solutions and associated software for isolated tissues studies from simple, manual systems to automated, computer-controlled systems. The AWS Modular Single Chamber Organ Bath was developed to provide a practical and functional design. They are used basically in teaching, where their low demanding maintenance, ruggedness and ease of use guarantee excellent didactic performance. This Modular option consists of a Perspex organ bath with a tissue chamber, three-way stopcock for physiological solution exchange and a fine needle valve for gas regulation. To maintain a constant temperature in the tissue chamber a Thermo regulated Water Pump is available which can be used with up to four Single Chamber Organ Baths at once. All organ baths include tissue holders, transducer holders, Micropostioner and tissue chambers (25 ml volume is supplied standard; 5, 10, or 50 ml volumes are available on request). Optionally, the AWS Modular Organ Baths can be associated with transducers, amplifiers and data output software from several brands. Common configurations use AD Instrument LABCHART or PANLAB PROTOWIN software for data storage and analysis, including Dose/Response.

Download:Organ Bath Modular-Teaching
